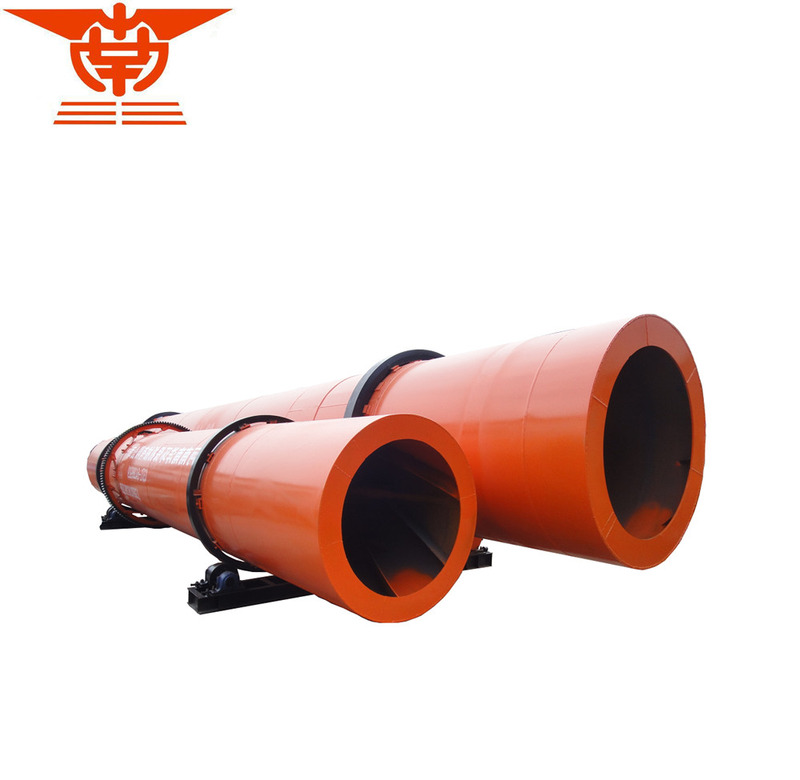

Rotary dryer is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
1.Efficiently drying for the material in the dryer are highly scattered which has larger contact area with the high temperature air.
2.Less drying time with the adjustable moisture content after drying.
3.Less occupied area with simple structure,easy to maintain and operate.
4.Customized for every application and best price on the market.
1.Efficiently drying for the material in the dryer are highly scattered which has larger contact area with the high temperature air.
2.Less drying time with the adjustable moisture content after drying.
3.Less occupied area with simple structure,easy to maintain and operate.
4.Customized for every application and best price on the market.
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .
4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .
5. The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse
The auto-combustion device provides heat resource for our rotary drum dryer, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material is thus dried gradually.
1. Furnace
2.Connection pipes between sawdust dryer and furnace
3. Feeding Device
4. Wood Chips/Wood Shavings/Sawdust Rotary Dryer roller ring
5. Big gear(45# steel)
6.Transmission parts ( Motor, Reducer, Bearing, Small gear)
7.Carrier Roller of Wood Chips/Wood Shavings/SawdustRotary Dryer
8) Discharing Device
9) Cyclone
10) Dust Remover
11) Air induced fan
| Model (mm) | Inclination (%) | Rotate speed (r/min) | Air inlet temperature (°C) | Power (kw) | Production capacity(t/h) | Weight (t) |
| Φ600x6000 | 2-3 | 6-9 | ≤800 | 9 | 0.1-0.2 | 2.3 |
| Φ800x8000 | 2-3 | 6-9 | ≤800 | 12 | 0.3-0.5 | 3.5 |
| Φ1000x10000 | 2-3 | 6-9 | ≤800 | 25 | 0.5-0.8 | 5.6 |
| Φ1200x12000 | 2-3 | 6-9 | ≤800 | 28.5 | 1.0-1.5 | 11.4 |
| Φ1500x16000 | 2-3 | 6-9 | ≤800 | 43.5 | 2-2.5 | 16.8 |
| Φ1800x18000 | 2-3 | 6-9 | ≤800 | 62 | 3-4 | 26 |
| Φ2000x20000 | 2-3 | 6-9 | ≤800 | 85 | 4-6 | 30.5 |
| Φ2200x20000 | 2-3 | 6-9 | ≤800 | 100 | 7-10 | 35.7 |
| Φ2400x20000 | 2-3 | 6-9 | ≤800 | 122 | 10-14 | 49.2 |
| Φ2600x22000 | 2-3 | 6-9 | ≤800 | 155 | 15-20 | 64 |
| Φ2700x24000 | 2-3 | 6-9 | ≤800 | 210 | 20-25 | 80.2 |
| Φ3000x24000 | 2-3 | 6-9 | ≤800 | 240 | 25-30 | 105.3 |
The high temperature gas gets into the cylinder from the airheater. The materials were conveyed to the dryer by conveyor in constant speed. Due to the tilting and rotary of cylinder, the material along with the circumferential direction turning and is lifting by feed plate. Then materials get down and scattered along axial movement, high temperature gas get through and complete the heat transfer so as to achieve the purpose of drying.
1).If any interest in our machine, please feel free to contact we and let us know your requirement on capacity and material size. We will try our best to slove your problem in time and perfectly.
2).We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3).Whole plant design and drawings are free after ordering.
4).Quality Commitment: 1 year guarantee and Supply wearing parts with favorable price and long term after-sales service.
5).If you need, we will dispatch professional engineer for installation, worker training and track service
Nanyang Machinery is a professional company in making dryer equipments. The long-standing culture of Nanyang Machinery is “making environmental dryer equipment with high quality”.And now we have invented a series of efficiently and environmentally dryers.
1.Question: How long can you guarantee your products and their parts?
Answer: We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues. After one year, wo also can provide technical and other supports during the whole life of our products whenever you need.
2.Question: How about your company strength?
Answer: We have accumulated nearly three decades of experience in producing and sales on dryer equipments,which helps us to through a number of national certifications and occupy so many markets that not only domestic but also international.
3.Question: What's your biggest advantage?
Answer: Obviously, it is professional and dedicated.
