Home /Products/Feed Pellet Making Machine/Make Biomass Pellets Biomass Mini Wood Pellet Making Machine Pellet Press Making Machinery

Make Biomass Pellets Biomass Mini Wood Pellet Making Machine Pellet Press Making Machinery

1.0 set
MOQ
Make Biomass Pellets Biomass Mini Wood Pellet Making Machine Pellet Press Making Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Raw Material Processed: Rice Husk, Wood Sawdust, Biomass, Straw
Pellet Diameter (mm): 2.5 - 8
Output (kg/h): 150 - 1000 Kg/h
Voltage: 220V/380V
Dimension(L*W*H): 80*85cm
Motor Power (Kw): 3KW,4KW,7.5KW,15KW
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Farms, Home Use, Retail, Pet Shop
Key Selling Points: High Productivity
Weight (KG): 500 KG
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: More Than 5 Years
Core Components: Bearing, Motor, Gear
Product Name: Wood Pellet Machine
Pellet Size: 2.5-8mm
Capacity: 150-1000kg/h
Application: Make Biomass Pellets
Raw Material: Wood, Sawdust
Usage: Biomass Energy Industry
Mode: Flat Die
Spare Parts: Falt Die
Motor: Pure Copper Motor
Delivery Port: Qingdao
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Local Service Location: None
Showroom Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: film, wooden case
Supply Ability: 30 Set/Sets per Month
Product Description
Product Overview

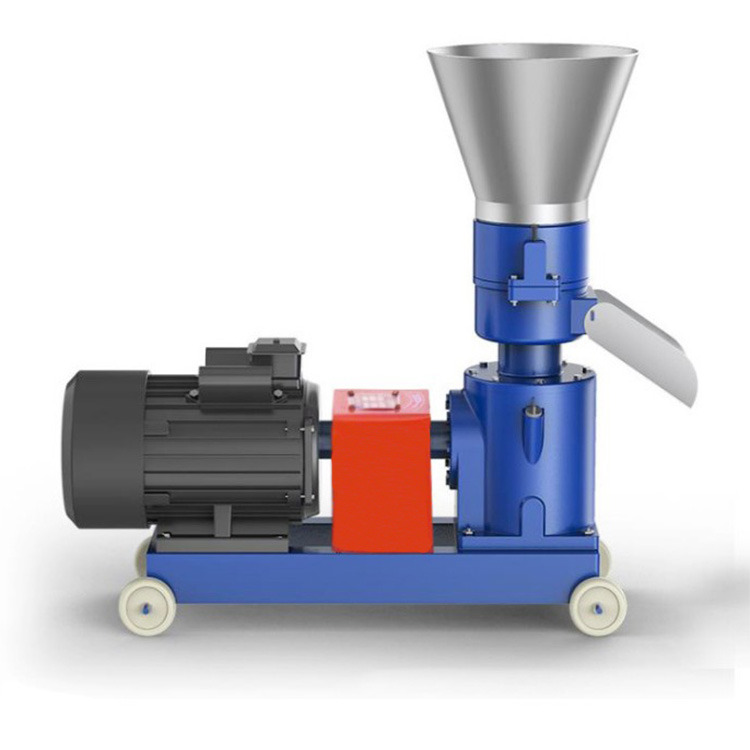

High Quality Wood Pellet Machine

1. The wood pellet making machine template and pressure roller are specially treated with high-quality alloy steel. The spindle and flat die drive the pressure roller under the action of friction. The pressure roller and the template produce high temperature to make the starch mature, the protein denatures and solidifies, and is pressed in the pressure roller. Discharged from the die hole
2. The particles are sent out of the feed pellet mill through the tray, and the length of the particles can be controlled by adjusting the angle of the cutter.
3. The flat die pellet mill is mainly suitable for small and medium-sized breeding professional households to process and produce all kinds of livestock and poultry and aquatic pellets, which can reduce the breeding cost. Can be used to raise rabbits, chickens, ducks, geese, fish, pigs, aquatic products, etc.
FEATURES AT A GLANCE
1. simple structure, wide application, small area occupied low noise.
2. Powder feed, grass powder doesn't need to add any liquid, so the final pellet moisture is equal to the raw material, easier to save.
3. Widely used in livestock, small, medium, and large feed mills, suitable for feed chicken, duck, fish, rabbit, cow, sheep, pig, bird, and dog, etc. the finished pellet can obtain more economic efficiency. Also can be used for brewing, sugar, paper, medicine, cigarette factory.
4. The finished pellet is dry input and dry output. Has higher hardness, smooth surface, and internal curing, can improve digestion.
PRODUCT SPECIFICATIONS
Model
Power
Capacity(kg/h)
Dimension(mm)
Weight(kg)
Wood sawdust
Animal feed
HOB-150
3kw
50-70
90-120
750*350*650
120
HOB-210
7.5kw
110-140
200-300
1000*430*950
230
HOB-260
15kw
220-280
400-600
1200*500*1070
360
HOB-300
22kw
600-800
800-1000
1270*520*1070
370
PRODUCT CONFIGURATION
FAQ
Q1: What's the diameter of final wood pellets? A: The diameter of the final sawdust pellet machine is adjustable by changing the die of the biomass pellet mill. It can be 2.5~8mm. But the sawdust pellet mill effect of 6mm and 8mm pellets is the best. Q2: What's the decibel of noise when making pellets with this sawdust pellet mill? A: There will be noise in the pellet-making process. But it is within the limits of criteria. Q3: What is the voltage and frequency of the available power source? A: Our sawdust pellet mill utilizes 3-phase 380V, 50HZ. If you have different requirements please inform us.
