Medicine Processing New Type Energy Saving Industrial Rotary Drum Dryer Drying Equipment

1.0 piece
MOQ
Medicine Processing New Type Energy Saving Industrial Rotary Drum Dryer Drying Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Drum Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Agricultural Processing
Condition: New
Voltage: 220V/380V/UPON
Power: 5.5-74 Kw
Dimension(L*W*H): Accroding To Model
Key Selling Points: Energy Saving
Warranty: 1 Year
Weight (KG): 30000
Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Energy & Mining
Showroom Location: Philippines, Brazil, Pakistan, Mexico, Russia, Uzbekistan
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Gear, Motor, Gearbox
Material: SUS304, SUS304L, SUS316, SUS316L, Ti, Other
Product Name: Industrial Drying Equipment Rotary Drum Dryer
Drum Size:: Customized
Usage: Industrial,agricultural
Rotary Dryer Material: Refractory Carbon Steel
After-sales Service Provided:: Overseas Service Provided
Function: Stoving Slag, Sand, Coal, Fly Ash, Iron Powder, Ore, Quartz Sand
Rotary Dryer Obliquity(°): 3-5
Rotary Dryer Rotation Speed(r/min): 2-6
Rotary Dryer Feeding Temperature: <=800
Weight: 2.9-154.9t
Basic Infomation
Payment & Shipping Terms
Supply Ability: 50 Piece/Pieces per Month
Product Description
Product Overview

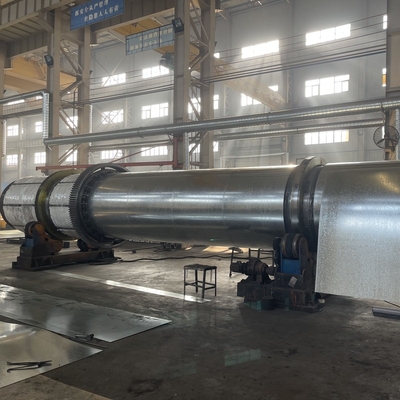

New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

rotary drum dryer is mainly applied for stoving slag, sand, coal, fly ash, iron powder, ore, quartz sand and other particle materials. It has the following characteristics: 1. The cylinder protect itself, thermal efficiency can up to 95%.The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately 2. Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance..High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C) 3. Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter. 4. Without gear and pinion drive, but wheel rotation applied, level operation of the complete machine makes system simple and reasonable. 5. Air heater could match boiling furnace, or oil furnace can also be applied, which can dry materials with size below 20mm. 6. Final moisture index can be adjusted according to requirements of customers.
FEATURES AT A GLANCE
Rotary dryer is the choice for high throughput capacity applications involving high moisture,
Descriptions
Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness
of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the
cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to
dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral
conveyor under the blade, and are conveyed, collected and packed.
Features
1. High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction
keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for
evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of
feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying
speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and
makes it applicable to dry various materials and to meet different requirements of production.
3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive
materials. It also can be pressure reducing operated if it is put in vacuum vessel.
Click the image below to start online customization for the design you want.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model
Diameter of outer cylinder(m)
Length of outer cylinder (m)
Drum volume(m³)
Rotation speed(r/min)
Max. air flow temperature(℃)
Production capacity(t/h)
Power(kw)
2.0*4m
2
4
12.56
4-10
700-750
8-15
5.5x2
2.2*5m
2.2
5
18.99
4-10
700-750
12-20
5.5x2
2.5*6m
2.5
6
29.43
4-10
700-750
18-28
7.5x2
2.8*6m
2.8
6
36.92
4-10
700-750
25-35
11x2
3.0*6m
3
6
42.39
4-10
700-750
30-40
7.5x4
3.0*7m
3
7
49.45
4-10
700-750
30-45
7.5x4
3.2*7m
3.2
7
56.27
4-10
700-750
30-55
11x4
3.6*8m
3.6
8
81.39
4-10
700-750
55-75
18.5x4
4.0*10m
4
10
125.60
4-10
700-750
70-100
22x4
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining
projects in China & Overseas.
