Model |
Power (kw) |
Reducer Model |
Intake Temperature (degree) |
Installation Angle (degree) |
Rotary Speed (r/min) |
Output (t/h) |
TDLQ-0808 |
5.5 |
ZQ250 |
Above 300 |
3-5 |
6 |
1-2 |
TDLQ-1010 |
7.5 |
ZQ350 |
Above 300 |
3-5 |
6 |
2-4 |
TDLQ-1212 |
7.5 |
ZQ350 |
Above 300 |
3-5 |
6 |
3-5 |
TDLQ-1515 |
11 |
ZQ400 |
Above 300 |
3-5 |
6 |
4-6 |
TDLQ-1616 |
15 |
ZQ400 |
Above 300 |
3-5 |
6 |
6-8 |
TDLQ-1818 |
22 |
ZQ500 |
Above 300 |
3-5 |
5.8 |
7-12 |
TDLQ-2020 |
37 |
ZQ500 |
Above 300 |
3-5 |
5.5 |
8-15 |
TDLQ-2222 |
37 |
ZQ500 |
Above 300 |
3-5 |
5.5 |
8-16 |
TDLQ-2424 |
45 |
ZQ650 |
Above 300 |
3-5 |
5.2 |
14-18 |
Product introduction

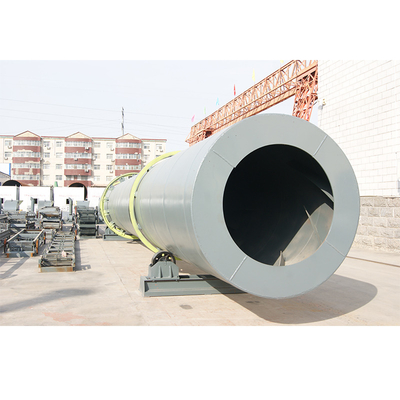

Rotary dryer is one of the traditional drying equipments. It has reliable operation, large operation flexibility, strong adaptability and large processing capacity. It is widely used in metallurgy, building materials, chemical industry, coal washing, fertilizer, ore, sand, clay, kaolin, sugar, etc. Field, diameter: Φ1000-Φ4000, the length is determined according to the drying requirements. In the center of the tumble dryer, the breaking mechanism can be avoided, and the wet material entering the drying cylinder is repeatedly picked up and thrown by the copy board on the wall of the rotating cylinder, and is broken into fine particles by the dispersing device during the falling process. The specific area is greatly increased, and it is in full contact with the hot air and dried.
Performance characteristics
1.The distribution and angle of the lifting plate of the rotary dryer are reasonable and the performance is reliable, so the heat energy utilization rate is high and the drying is uniform.
2.The rotary dryer has a large processing capacity, low fuel consumption, and low drying cost.
3.The rotary dryer equipment adopts a self-aligning tug structure, and the tug and the rolling ring cooperate well, which greatly reduces wear and power consumption.
4.The dryer has the characteristics of high temperature resistance and can quickly dry materials with high temperature hot air. The scalability is strong and the design takes into account the production margin.
Working principle
The rotary dryer is mainly composed of a rotating body, a lifting plate, a transmission device, a supporting device and a sealing ring. The dried wet material is sent to the hopper by a belt conveyor or a bucket elevator, and then fed through the hopper through the feeding pipe into the feed end. The slope of the feeding pipe is greater than the natural inclination of the material so that the material flows smoothly into the dryer. The dryer cylinder is a rotating cylinder that is slightly inclined to the horizontal. The material is added from the higher end, the heat carrier enters from the lower end, and is in countercurrent contact with the material, and the heat carrier and the material are simultaneously flowed into the cylinder. As the rotating material of the cylinder is moved by gravity to the lower end. During the forward movement of the wet material in the cylinder body, the heat supply of the heat carrier is directly or indirectly obtained, so that the wet material is dried, and then sent out at the discharge end through a belt conveyor or a screw conveyor.
Notice:
And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.
The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.
Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.
Notice:
1.Big machines packed in nude or shipping in containers.
2. Spare parts packed in wooden case.
3. If you have any special requirement, we will pack as request.
1. What is your minimum order quantity, can you send me samples?
The minimum order quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples; however, online brochure is available under request and we warmly welcome you to visit our company.
2.How about price?
We can give you the lowest price than market one, of course, the discount is based on the quantity.
3. How can I get to your factory?
Our factory is near Zhengzhou Xinzheng Airport, we can pick you up from the airport.
4. Can the machine be customized according to our needs, such as put on our logo?
Surely the machine can be customized accoridng to your specific requirements, putting your logo on is also available and region agents are welcomed.
5.About the aftersale service, how can you solve the problems occurred of your overseas customer in time?
The machine warranty is 12 months, we have engineers available to help you solve your problems during that period.
