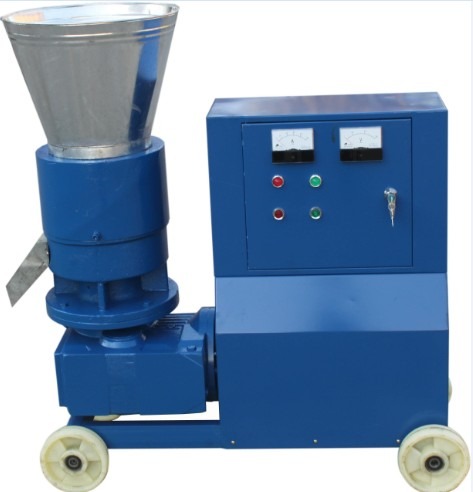

Make Biomass Pellets Wood Pellet Casting Machine For Making Biomass Pellets

10 Sets
MOQ
$1,800.00(>=10 Sets)
Price
Make Biomass Pellets Wood Pellet Casting Machine For Making Biomass Pellets
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Raw Material Processed: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks
Pellet Diameter (mm): 2.5 - 10
Output (kg/h): 150 - 200 Kg/h
Voltage: 380V
Dimension(L*W*H): 102*48*98cm
Motor Power (Kw): 11kw
Power (kW): 11kw
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Farms, Retail, Energy & Mining
Key Selling Points: Energy Saving
Weight (KG): 320 KG
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Gearbox
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training
Application: Make Biomass Pellets
Capacity: 100-150 Kg/h
Pellet Diameter: 4-10mm
Pellet Length: 5-50mm
Matrix Diameter: 230mm
Packing Size: 102*48*98cm
Weight: 320kg
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: United Kingdom, United States, Italy, France, Germany, Saudi Arabia, Australia, Morocco, UAE, South Africa
Showroom Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Plywood box
Supply Ability: 1000 Set/Sets per Week
Product Description
Product Description

Product Application

The wood pellet molding machine is used for pressing material such as grain, firewood, stalk, tree branches, wood meal, fruit hull, palm and tailing of cotton plant, and widely used for recycle of livestock farms, biomass fuel plant, power plant, wood processing plant, fertilizer plant, chemical plant, food plant and cotton plant.


Specification of wood pellet molding machine:

Model
Power
Capacity
N/G weight
Packing size
TOPS225
7.5kw
60-100kg/h
230/260kg
100*45*98cm
TOPS229
11kw
100-150kg/h
320/360kg
102*48*98cm
TOPS295
15kw
150-200kg/h
450/480kg
108*52*105cm
TOPS335
22kw
200-300kg/h
580/600kg
134*60*115cm
TOPS395
30kw
300-450kg/h
620/650kg
152*60*121cm

Main Features

1.The latest improved model specially for making wood pellets

2.Unique design for motor and gear box

3.New roller rotating instead of previous die rotating

4.More than 20% output capacity increase than old models

Certifications
Detailed Images

Machine Parts

Name: roller

Brand: TOPS

Original: China

This roller wheels made by alloy steel. It's wearing parts, life time is about 300 hours.

Main Features

Name: Matrix/ flat die
Brand: TOPS
Original: China
This matrix made by alloy steel, also is wearing part, life time is about 300 hours. The hole diameter you can choose from 4mm, 6mm, 8mm and 10mm.

Our Service
Packing & Delivery
Packaging
Size
102*48*98cm
Weight
320kg



Packaging Details
The normal package is wooden box, can be export directly.
